Key Benefits
-
Significantly Reduces Noise: Minimizes the disruptive effect of recoil air noise during seismic operations.
-
Improves Data Quality: Reduces signal interference, ensuring cleaner seismic readings.
-
Compact and Robust: Space-efficient design with a durable, marine-grade construction.
-
Low Maintenance: Engineered for minimal service needs under correct installation.
-
Customizable: Exhaust pipe length can be adjusted according to customer requirements.
-
Reliable Operation: Built to operate efficiently at inlet pressures up to 150 bar.

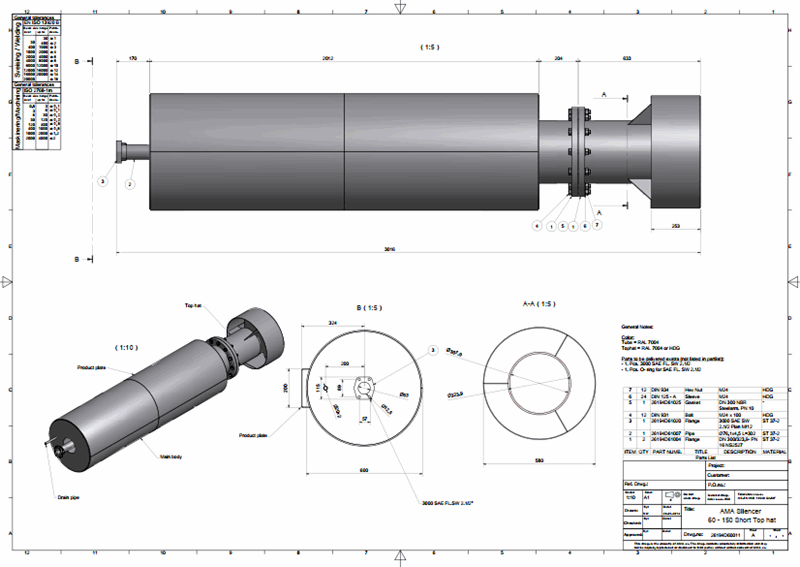

Technical Specifications – Silencer Body
| Component |
Specification |
| Pressure Camber |
20 pcs |
| Sound Reduction Stages |
6 steps |
| Diameter |
Ø 600 mm |
| Length |
2370 mm |
| Exhaust Pipe Diameter |
Ø 323.9 mm |
| Exhaust Pipe Length |
2220 mm* |
| Inlet Pipe Diameter |
Ø 76.1 mm |
| Inlet Flange Type |
SAE J518C |
| Extra Inlet Flange |
Ø 76.1 mm Socket (Welded) |
| Drain Pipe Diameter |
Ø 18 mm |
| Overall Length |
4590 mm |
| Overall Width |
Ø 600 mm |
| Weight |
430 kg |
| Air Capacity |
70 m³/min |
| Inlet Pressure |
150 bar |
| Mounting Orientation |
Vertical |
* Exhaust pipe length can be customized.
Installation & Safety Notes
-
Only original parts should be used.
-
Internal components require no maintenance if installed correctly.
-
Outdoor installations must use hot-dip galvanized units with protective top hat.
-
Always use the enclosed high-pressure flanges.
-
Ensure all pipes and connections are open and unobstructed.
-
Never install in confined or poorly ventilated rooms – the system must safely vent compressed air.
-
Not suitable for environments below 0°C.
-
Drain pipe must lead directly to drainage with no angles or dips that could cause water locking.
-
Always install vertically.

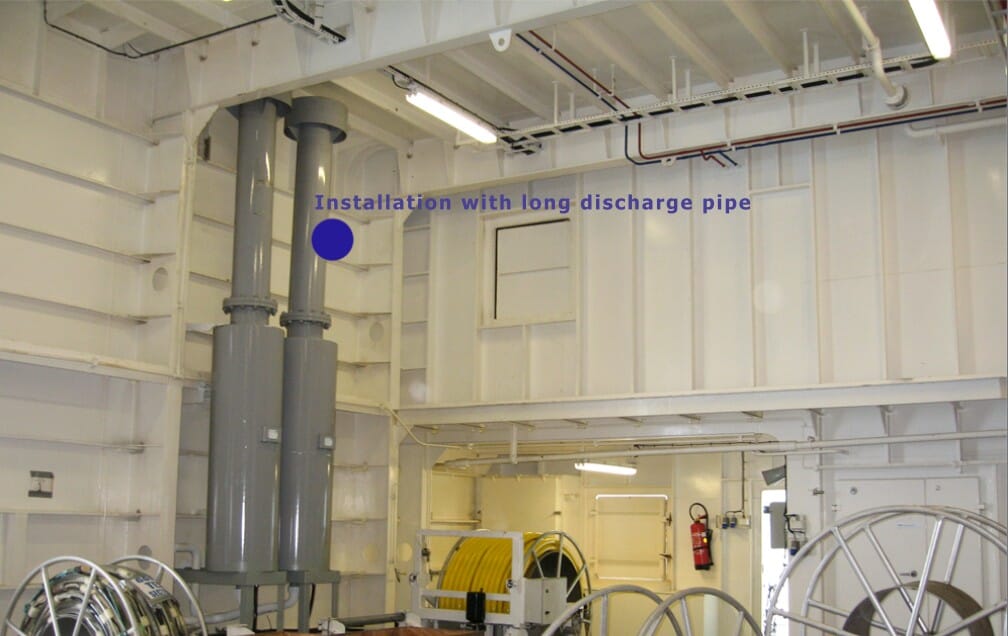

Installation example:

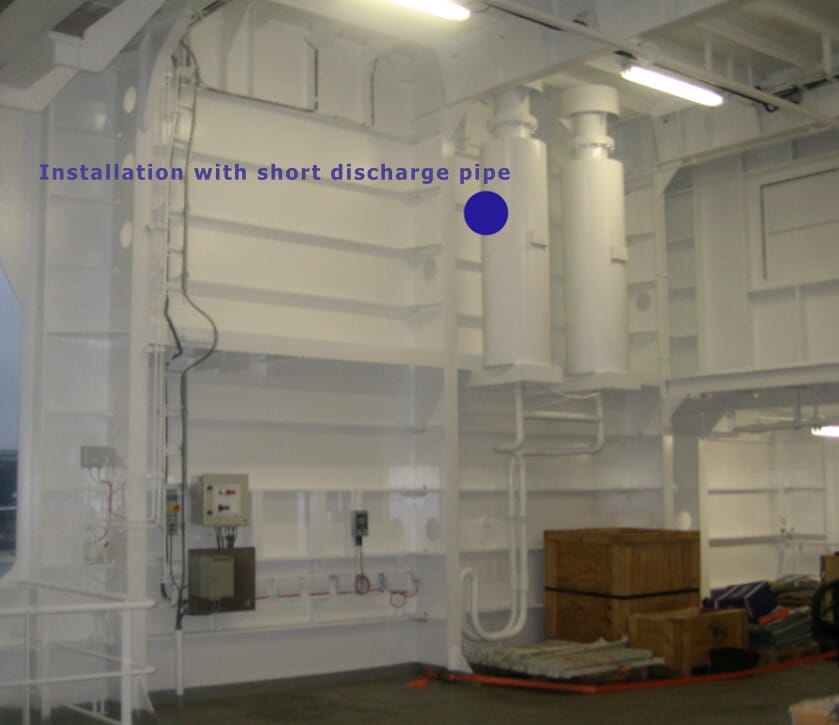

Installation example:
